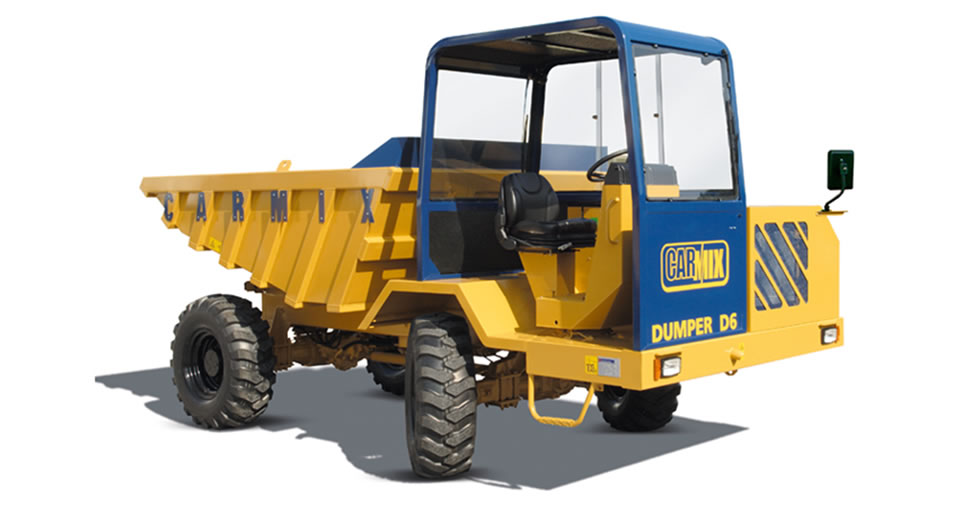

Carmix Dumper adalah Dumper beton 4 × 4 dengan tingkat 4.500 liter dan 6.000 liter penuh, dilengkapi dengan tempat sampah batu dengan kotak pembuangan hidraulik 2 silinder, kecepatan operasi dari 0 hingga 12 km / jam, kecepatan transfer jalan dari 0 hingga 25 km / jam.

Mixer Dumper menjamin keamanan maksimum operator dan dirancang untuk operasi off road. Bagi Anda yang ingin mengetahui harga dari Carmix Dumper D6 ini bisa langsung menghubungi staff marketing kami [klik di sini untuk menghubungi]

Online

Need help? Chat via WhatsApp

Carmix Dumper D6 Spec

LOADING CAPACITY: Struck: 4500 litters. Heaped SAE: 6000 litters.
PAYLOAD: Kg. 10.000
ENGINE: Perkins 1104 D-44 TA Turbo-Diesel, water-cooled, 4 cylinders. U.E. + U.S.A.: Perkins 854 E-34 TA Turbo-Diesel, water-cooled, 4 cylinders. Rated power KW 83 (111 HP) set at 2.300 rpm.
TRANSMISSION: fully hydrostatic Bosch Rexroth with electric inverter. Gear box with mechanic control, two speeds. 4 wheel drive and steering.
AXLES: Dana Spicer with oil bath disc brakes and planetary reducer
SPEED: Working speed from 0 to 9 km/h. Road transfer from 0 to 25 km/h.
DRIVING SEAT: Reversible seat with automatic inversion of hydraulic steering circuits. ROPS-FOPS (UNI 11023 – ISO 3471) cab closed on 3 sides.
SKIP: Heavy duty rock type. Hydraulic tilting with 2 cylinders.
HYDRAULIC SYSTEM: 2 independent circuits, variable outlet pump for hydrostatic transmission and hydraulic pump for services. Heat exchanger water-oil-air/air type.
BRAKES: Oil bath disc brakes on 4 wheels. Hydraulic parking brake negative on rear axle manually operated.
TYRES: Off road industrial type 16/70-20 14 PR.
STEERING: Hydrostatic, “load sensing“ type 3 way steering. Radius: internal 2000 mm. external 3700 mm.
ELECTRIC SYSTEM: 12 volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off.
GRADIENT: fully loaded 30%
TANKS: Diesel: 115 litters. Hydraulic oil: 80 litre.
CHASSIS: Steel profile specially engineered for off-road operations.
WEIGHT: Empty: 5.800 kg equally distributed on both axles.
SAFETY: Machine equipped with checking and block valves for maximum safety of the operator.
CATALOGUE: The machine is equipped with Use and Manteinance and Spare Parts Manuals according to CE regulations.
